Nowadays sheet metal fabrication techniques are crucial in a great number of industries. Metal components can be found in cars, electronics and much more. These are techniques that assist in shaping, cutting and bending a metal sheet metal into useful components. This is practiced generally in small scale manufacture and in large scale manufactures. However, the important thing is to know the right procedure to a perfect finish.

What Is Sheet Metal Fabrication Techniques?

Sheet metal fabrication techniques means making metal parts from flat sheets. It involves cutting, bending, and joining metal pieces. Different tools and machines are used in each step. These methods are chosen based on design, thickness, and type of Sheet metal fabrication. The goal is to create strong and useful metal parts.

Most Common Metal Fabrication Techniques

Many techniques are used in this process. Each has a special role. Let’s explore them one by one.

Cutting

Cutting is the first step. It shapes the metal sheet into a rough design. Popular cutting methods include laser cutting, plasma cutting, and waterjet cutting. These offer clean and accurate cuts. Cutting is used in every sheet metal project.

Bending

Metal sheet bending changes the shape of the metal without cutting it. Press brakes and folding machines are used here. This helps make parts like brackets or boxes. Bending requires skill to avoid cracks or weak spots.

Punching

Punching makes holes or shapes in the sheet. It uses a die and a punch tool. This is great for making vents or designs. Punching is fast and works well on thin sheets.

Stamping

Stamping is like punching, but it also adds texture or letters. It’s often used for logos, patterns, or part numbers. Stamping is used in car and appliance manufacturing.

Welding

Welding joins metal pieces using heat. Different types include MIG, TIG, and spot welding. Welded parts are strong and durable. Welding is a key part of final assembly.

Fastening

The method of fastening incorporates the use of rivets, bolts and screws. Moreover, this is a good way when you want to disassemble parts in the future. It’s common in electronics and machines.

Cutting Methods in Metal Sheet Fabrication

Laser Cutting

Laser cutting uses a focused beam of light. It melts and cuts the metal with great accuracy. This method works best on thin to medium sheets. It’s perfect for clean shapes and fine detail. Many industries use laser cutting for fast results.

Waterjet Cutting

Waterjet cutting uses water mixed with abrasives. It cuts metal without heat. This is great for materials that get damaged by heat. It can cut very thick sheets. Waterjet cutting is eco-friendly and reduces waste.

Metal Sheet Bending Techniques

Bending is crucial in shaping metal parts. It turns flat sheets into 3D parts. Below are some bending techniques.

Air Bending

Air bending uses a punch and a die. The metal bends without touching the die fully. This gives more control over the angle. It’s widely used due to its flexibility.

Bottoming

In bottoming, the punch forces the metal to touch the die completely. This gives a sharp and fixed angle. It works best when you need exact dimensions.

Roll Bending

Roll bending uses rollers to bend long sheets into curves. It’s ideal for pipes or cylinders. This sheet metal fabrication techniques is common in making tanks and drums.

Metal Sheet Bending Methods

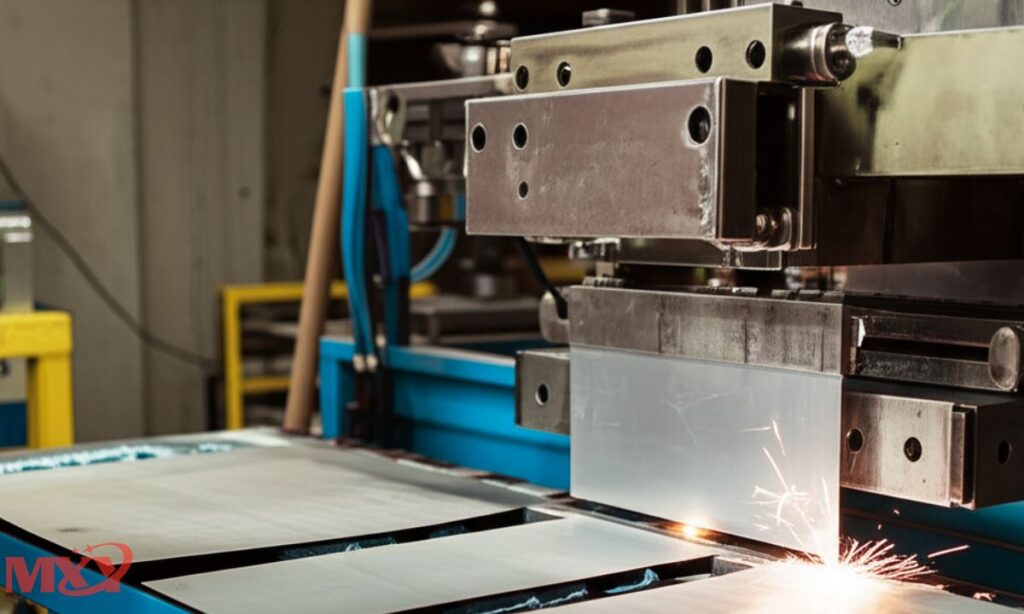

Benefits of Sheet Metal Fabrication

Using sheet metal fabrication techniques has many advantages. Let’s look at a few:

• Durability: Metal parts last longer than plastic or wood.
• Customization: You can create parts in any shape or size.
• Strength: Metal sheets are strong and resist wear.
• Cost-Effective: Mass production reduces cost.
• Eco-Friendly: Metal can be recycled easily.

Metal Sheet Fabrication in Today’s Industries

Sheet Metal Fabrication Techniques is used in many industries. In automotive, it forms car parts and frames. In electronics, it shapes enclosures and brackets. In construction, it makes ducts, roofs, and panels. Even in furniture, metal sheets give modern designs. These techniques are also key in aerospace and defense. Every plane, missile, or satellite has sheet metal parts. The accuracy and strength of these methods are unmatched.

Choosing the Right Technique

Each project has different needs. Choosing the right technique depends on:

• Type of metal
• Thickness
• Budget
• Design complexity
• Speed of production

A simple part may just need cutting and bending. Complex parts might need stamping, welding, and polishing. Always match the method with the goal.

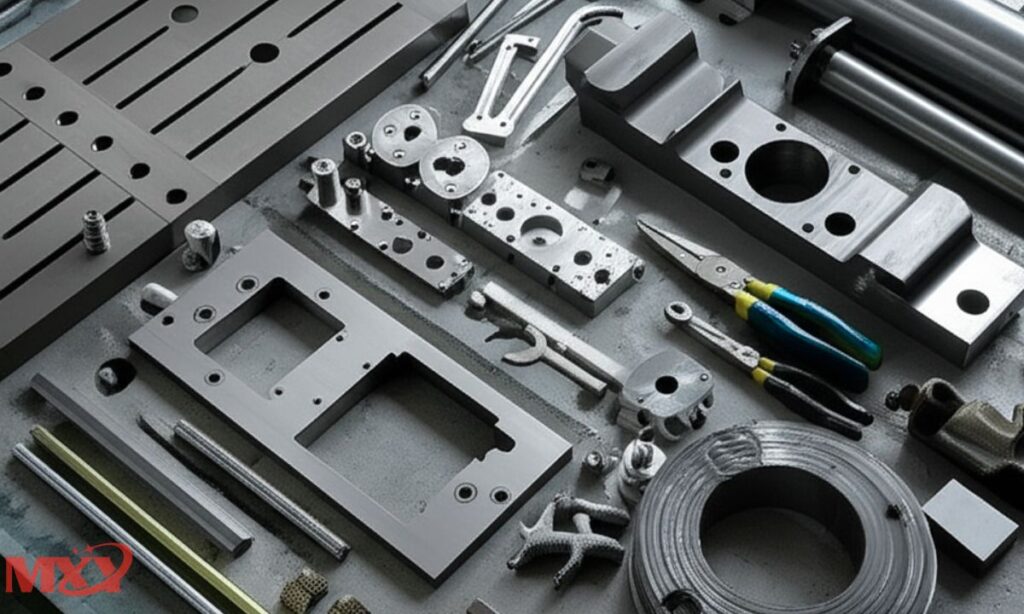

Tips for Better Fabrication

Here are a few tips for better sheet metal fabrication techniques results:

• Use high-quality metal sheets.
• Always measure twice before cutting.
• Choose the right machine for each task.
• Check for sharp edges after cutting or bending.
• Protect surfaces from rust and damage.

These simple steps can save time and reduce errors.

Final Words

Most of the things which surround us are modeled through Sheet metal fabrication techniques. These techniques are relevant in small gadgets to large buildings. It is helpful to learn about all the processes to select the most appropriate one. Whether laser cutting, bending of metal sheets or waterjet cutting, an appropriate approach warrants faultless outcomes. Knowing these techniques is a great deal when you are in design, construction, or production. With experience and appropriate tools, you can design powerful and tailor-made metal components that could be used in any purpose.

FAQs

What is sheet metal fabrication?
The sheet metal fabrication techniques consists of cutting, bending and assembling metal sheets to make parts.

What cutting process is ideal in making clean edges?

Laser cutting is best suited to sharp clean edges particularly on thin to medium plates of metals.

Is waterjet cutting suitable for all metals?
Yes, waterjet cutting works on most metals, including heat-sensitive materials, without causing thermal damage.

What is the difference between air bending and bottoming?
Air bending doesn’t fully press the metal into the die, while bottoming creates a sharper, more exact angle.

Where is sheet metal fabrication used?
It is widely used in automotive, aerospace, construction, electronics, and industrial machinery.
